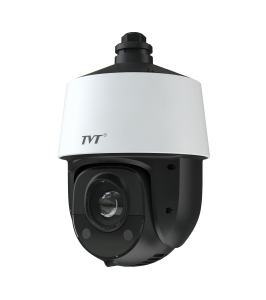

TD-8423IS (PE/20M/AR15)

4″ 2MP 20x Network IR Speed Dome

Featuring powerful optical zoom and accurate pan/tilt/zoom performance, the camera provides a wide monitoring range and great detail. The camera delivers 2MP full high definition resolution at 25/30fps. The camera is equipped with smooth control, high quality image, and good protection, meeting compact size demands of video surveillance applications.


Datasheet
Manual
Firmware

Features

  • 1/2.8″ 2MP progressive scan CMOS
  • Up to 1920 x 1080@30fps resolution Min. illumination:
  • Color: 0.006 Lux@(F1.6, AGC ON)
  • B/W: 0.003 Lux@(F1.6, AGC ON)
  • 0 Lux with IR
  • 20×  optical zoom, 16x digital zoom WDR, HLC, BLC, 3D DNR, Defog
  • Up to 150m smart IR distance
  • PoE (802.3 at class 4)
  • Support H.265+/H.265 video compression

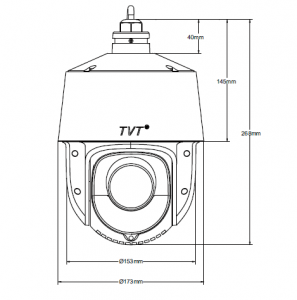

Dimension
