Feature

Physical Port

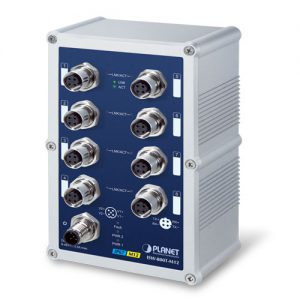

• 8-port 10/100Mbps M12 connector with IP67 protection
  Layer 2 Features
• Supports auto negotiation and 10/100Mbps half / full duplex mode
• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
• Backplane (Switching Fabric): 1.6Gbps
• Integrated address look-up engine, supports 2K absolute MAC addresses
• Automatic address learning and address aging
• CSMA/CD Protocol
  Industrial Case / Installation
• IP67 aluminum metal case protection
• DIN rail and wall mount design
• Waterproof / dustproof design
• 12 to 48V DC, redundant power with polarity reverse protect function and connective removable terminal block for master and slave power
• Supports EFT protection 6000 VDC for power line
• Supports 6000 VDC Ethernet ESD protection
• -40 to 75 degrees C operating temperature
