Features

Hardware

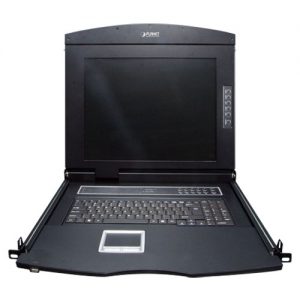

• Integrated 17″ LCD monitor and keyboard/touchpad module within 1U chassis
• Standalone machine controls up to 16 sets of computers
• Up to 2 levels can be cascaded and up to 256 computers can be controlled
• Port Select Panel status LEDs give a clear indication of the active computers
• Supports high resolution up to 1280 x 1024
• Mouse touch board with two function buttons
• Full-size 100-key keyboard with integrated number pad
• Front panel with lock to prevent damage by accident

Security

• Two-layer password security protection

Management

• Auto scan mode for monitoring computers
• Requires no additional software or hardware
• Computer selection via Port Select Button, Hotkey and On Screen Display (OSD)
• Hot pluggable: Add or remove computers without having to power down the switch
• QVS (Quick View Setting): Quickly select your computer by naming or SN number

Compatibility

• Multiplatform support — Windows, Linux and Sun
• Supports Microsoft Intellimouse, Logitech Net Mouse and all other third party’s PS/2 mice
